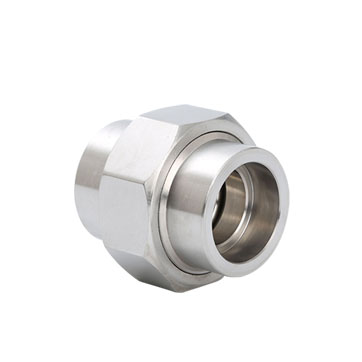

承插焊活接头

承插焊管件(一)

GB/T 14383、HGJ10、SHJ410、ASME B16.11、JIS B2316

Socket welding pipe fittings

公称通径

Nominal diameter DN(in)

深插孔 深度

Depth of

socket

壁厚Wall thickness

中心至承插孔底Center to bottom of socket

A

Cmin

90°弯头、三通、四通 "Elbow、Tee、Cross

45°弯头 45°Elbow

A

B(in)

Jmin

3000 Sch80

6000 Schl60

9000 XXS

3000 Sch80

6000 Schl60

9000 XXS

3000 Sch80

6000 Schl60

9000 XXS

6

1/8

10

3.2

4.0

-

11

11

-

8

8

-

8

1/4

10

3.8

4.6

-

11

14

-

8

8

-

10

3/8

10

4.0

5.1

-

14

16

-

8

11

-

15

1/2

10

4.5

5.6

9.4

16

19

25

11

13

16

20

3/4

13

5.0

7.0

9.8

19

22

29

13

14

19

25

1

13

5.6

7.9

11.4

22

27

32

14

18

21

32

11/4

13

6.3

7.9

12.2

27

32

35

18

21

22

40

11/2

13

6.3

8.9

12.7

32

38

38

21

25

25

50

2

16

7.0

11.0

13.9

38

41

54

25

29

29

65

21/2

16

8.9

12.5

-

41

57

-

29

32

-

80

3

16

10.0

13.8

-

57

64

-

32

35

-

100

4

16

10.7

-

-

67

-

-

41

-

-

注: 1)本表列出的为承插焊管件各相同部分尺寸,各标准规定的接管尺寸及承插孔径d1,流通孔径d2,见第46页。

2) 3000、 6000、 9000为压力等级代号,单位为磅/平方英寸; sch80、sch160、XXS为壁厚等级代号。

3) 45°、 90°弯头当其为异径时,流通孔径d2的尺寸用小口径公称通径相对的尺寸d2。


承插焊管件(二)

GB/T 14383、HGJ10、SHJ410、ASME B16.11、JIS B2316

Socket welding pipe fittings

公称通径

Nominal diameter

DN(in)

深插孔 深度

Depth of

socket

壁厚Wall thickness

管帽顶厚

The thickness of

the pipe cap top

安装长度 Installatoin length

中心至承插孔底 Center to bottom of socket

45°斜三通

Lateral tee

Cmin

Kmin

双承口管箍 Double coupling

单承口管箍

Half coupling

A

H

A

B(in)

Jmin

3000 Sch80

6000 Schl60

9000 XXS

3000 Sch80

6000 Schl60

9000 XXS

E

F

3000 Sch80

6000 Schl60

3000 Sch80

6000 Schl60

6

1/8

10

3.2

4.0

-

5.0

6.5

-

6

16

-

-

-

-

8

1/4

10

3.8

4.6

-

5.0

6.5

-

6

16

32

-

8

-

10

3/8

10

4.0

5.1

-

5.0

6.5

.

6

18

37

.

8

-

15

1/2

10

4.5

5.6

9.4

6.5

8.0

11.0

10

22

41

51

11

13

20

3/4

13

5.0

7.0

9.8

7.0

9.0

13.0

10

24

51

60

13

14

25

1

13

5.6

7.9

11.4

10.0

11.0

14.0

13

29

60

71

14

18

32

11/4

13

6.3

7.9

12.2

10.0

12.0

14.0

13

30

71

81

18

21

40

11/2

13

6.3

8.9

12.7

11.0

13.5

16.0

13

32

81

98

21

25

50

2

13

7.0

11.0

13.9

13.0

16.5

19.0

19

41

98

120

25

29

65

21/2

16

8.9

12.5

.

16.0

19.5

-

-

43

-

-

-

-

80

3

16

10.0

13.8

-

19.0

23.0

-

19

45

-

.

.

-

100

4

16

10.7

-

.

22.0

28.5

-

19

48

-

-

-

-

注:1)壁厚Cmin为任一点壁厚的最小值。2)异径管件中小口径部分中心至承插孔底的距离A与大口径部分为A相同。3)按顺序要求,管件也可以加工承插焊和螺纹混合的联接形式。

Note:1)Wall thickness Cmin to a minimum wall thickness.2)Reducing pipe fittings of small diameter part of the center distance to the bottom bearing insert A part with large diameter is the same A.3)According to the requirements of the order,pipe fittings can also be processed into socket welding and threaded connection form of hybrid.
